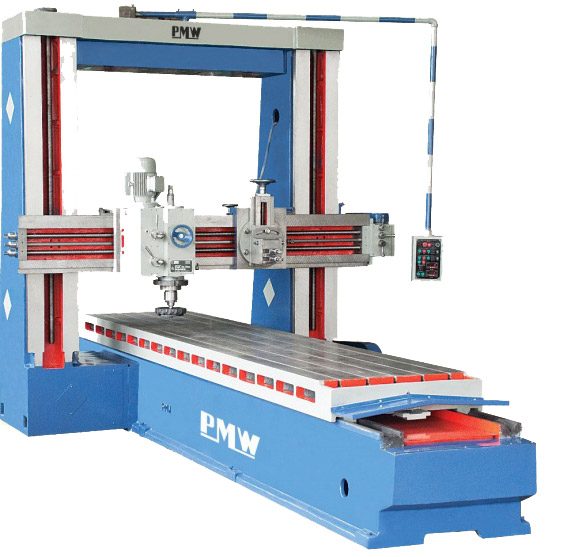

Planner Cum Plano Miller

We offer our valuable clients with a gamut of Plano Miller, which are used in various industries for the purpose of creating flat and angular surfaces. Our machines features high operational efficiency, robust construction and high durability. Further, we welcome customization of our machines as per clients requirements. We offer these machines at lucrative prices.

SPECIAL FEATURES OF THE PLANO MILLER


Casting & Design
We have our own cupola. So the casting of the main Bed, Table, Cross, Slide and Pillars are very heavy duty and the casting of Grade-20 is used. So it give long life and smooth working, especially the pillars and cross slide are extra heavy duty so that it can take heavy cut when the milling head working. The total outlook of our Plano Miller is very compact, excellent and well designed just like imported Plano Miller.
Gears
The gears of the main gear box, Cross slide gear box, Milling head and auto lifting gear box are used from EN-353/24 only and after induction hardening were teeth grinding on imported teeth grinding machines. The main Gear box of the bed and Rack of the table are from S.G. Iron Grade 500/12 and the life of these gears and rack are for the whole life.
Lubrication
The Plano Miller is fitted with auto lubrication i.e. 6 points in the main bed ‘v’s, Cross Slide filled with and the other parts where it require the oil regularly circulated by auto lubrication pump.
Milling Head
The Milling Head of PMW Plano Miller is very successful in working and the design is also very attractive & compact one. The total body fabricated of body is from tested steel material. The worm gears, helical gears and gears are from En-353/24 Material only and fitted after hardening and teeth grinding.

Technical Specification
